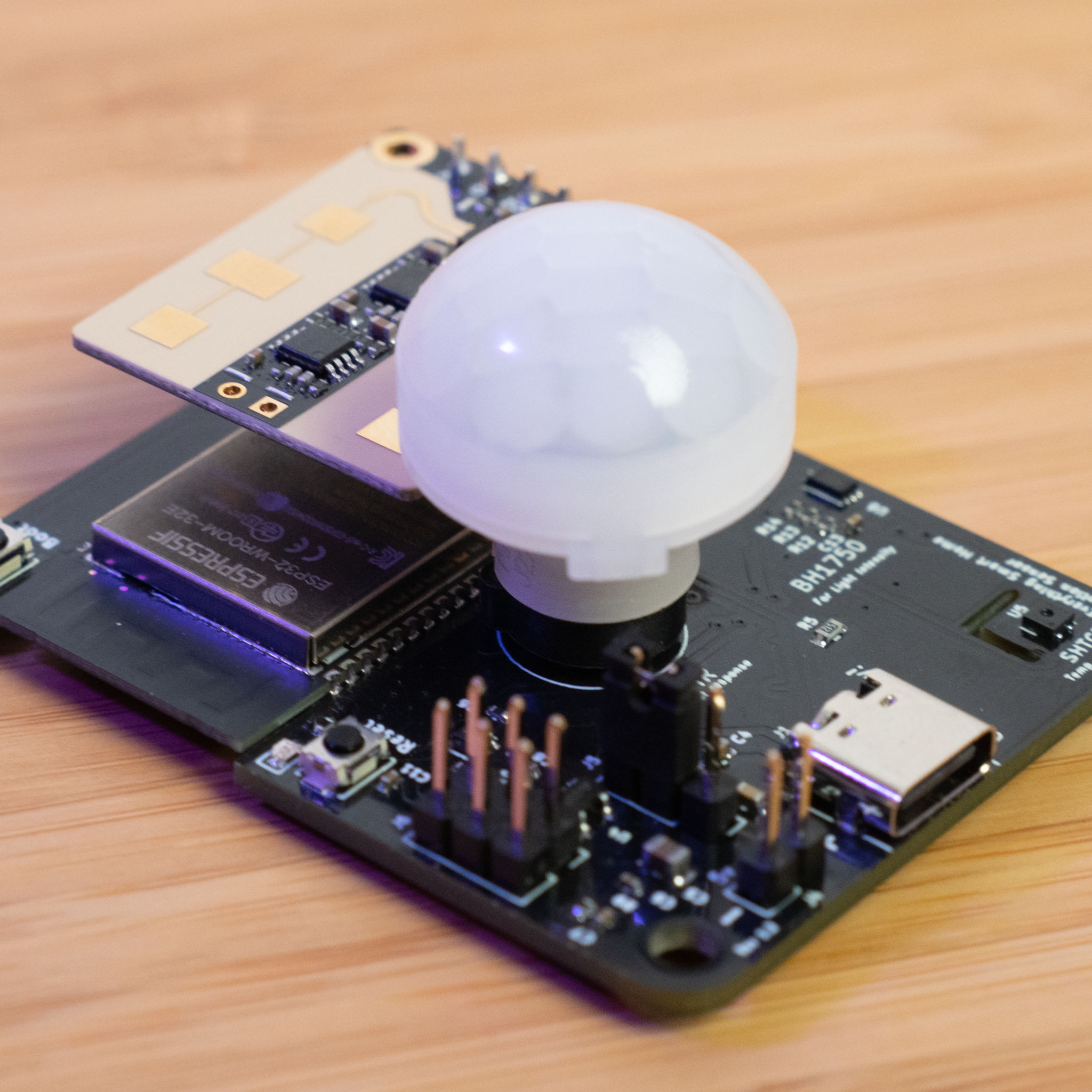

Everything Presence One ESPHome Installer

This site installs the latest ESPHome firmware on the Everything Presence One board for direct integration with Home Assistant.

Hit the connect button to install the latest ESPHome firmware on you're Everything Presence One board. No programming or other software required.

User Guide

Unboxing and Preperation

You will need 4 items to build your EP1 with this guide:

• Everything Presence One Board
• Panasonic PIR
• DFRobot mmWave Sensor
• 3D Printed Case

Assembly

First you will want to grab all 5 pieces of the 3D printed case - front, back, stand, ball socket and locking ring:

Start by taking the back, and inserting the ball socket into it from the front and use the locking ring to tighten it down:

Note that it will be pretty tight, but will still rotate if enough pressure is applied - this is intentional to allow for setting the position easier. Note also that the locking ring has a slight grove on one side, make sure this faces the back of the case:

Next, grab the EP1 base board and place it into the back of the case. Press down in all 4 corners and it will click into place securely.
